The History of Barnton Bunker
Hidden within the affluent Edinburgh suburbs Barnton Bunker complex is a unique setting steeped in history. Originally formed as part of Britain’s air defences during the Second World War (WW2) the site later assumed various crucial, yet highly classified roles throughout the Cold War period until it was officially decommissioned in the early-1990s.
Although not widely known a vast array of historical events played out here during its time in active operation. And while its existence remained hidden through the 1950s it became the impromptu stage for Campaign for Nuclear Disarmament (CND) activism during the 1960s once the location was revealed by the Spies for Peace scandal of 1963. Moreover, it was even at one time, the designated central emergency government hub for the Scottish Office. Should the country become detached indefinitely from London, Barnton was to co-ordinate survival and recovery efforts in the post-nuclear attack scenario conceived by the central British Government.
The Barnton Quarry complex is a unique site that carries a rich history of defensive operations spanning the Second World War and Cold War periods. Located approximately 4 miles (6.5 km) west of Edinburgh city centre the Barnton Bunker complex is neatly concealed towards the northern section of Corstorphine Hill. Despite its location in the middle of a populated residential area, and with public thoroughfares passing nearby, the important historical site was and to some degreecontinues to remain unknown (in part). This is by no means coincidence, for the disused quarry, surrounded by dense vegetation and woodland, was strategically chosen for its ability to conceal two of Scotland’s most important and top-secret bunkers of the 20th century.

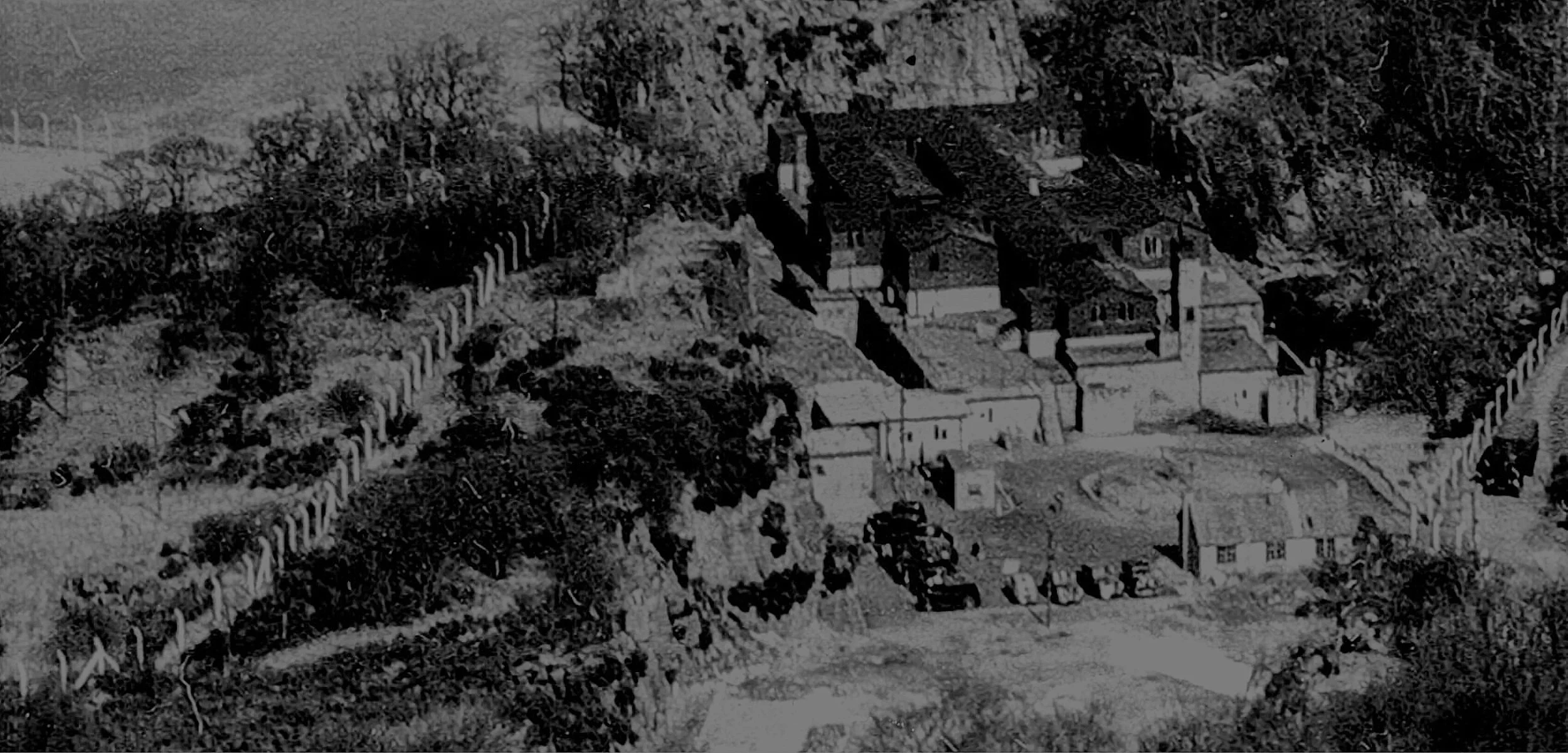

The first phase, built in the 1940s, included an above-ground Royal Air Force (RAF) Fighter Command Operations Room which covered the Turnhouse Sector during WW2. From here, squadrons of Hurricanes and Spitfires were scrambled from RAF airfields in Edinburgh, East Lothian, and Falkirk in the protection of British skies from the German Luftwaffe. Constructed to a standard Air Ministry design, the Operations Room was formed in brick and reinforced concrete for structural integrity and contained few external openings – a common design feature to protect service personnel from conventional ordnance. Internally, the building functioned from a centrally located plotting table (mainly controlled by female staff of the Women’s Auxiliary Air Force (WAAF)) with surrounding booths/cabins and elevated viewing platforms which enabled RAF officers to see timely updates on attack patterns and command fighters to areas under threat.
Although its earlier life marked a vital site for Britain’s air defences during WW2 Barnton Bunker’s later use during the Cold War carried a more lasting timeline. In the early years of the Cold War the main threat was identified as long-range Soviet bombers, carrying more powerful and deadly nuclear ordnance. To counter this danger Britain’s Air Ministry developed an advanced radar and monitoringnetwork codenamed ‘ROTOR.’ As part of this top-secret ROTOR programme Barnton Quarry was selected again as the location for the Sector Operations Centre (SOC) for the whole of Scotland.
This second phase of works, built across 1951-53, consisted of a purpose-built three-level ROTOR R4 SOC buried deep underground. This much larger bunker, devised from a new standard design template, was constructed alongside the extant WW2 facility – carefully integrating the additional subterranean elements without disturbing the surface-level complex. Its reinforced concrete walls were substantially thicker than its neighbouring WW2 precursor (up to 3.5m (12ft) for the main superstructure) in order to provide a greater degree of protection against more developed atomic weaponry. The bunker was then capped using a composite metal deck roof system – a fairly advanced construction technique at the time, where reinforced concrete was cast on top of steel troughs – before covered in 3m (10ft) of soil. Although it was unlikely the bunker would survive a direct strike, the British Government believed it would have been able to withstand a 3MT nuclear bomb detonated in Edinburgh city centre without any structural damage.
Initially, the R4 SOC at Barnton was the beating heart for controlling and monitoring Scotland’s entire airspace. Various radar sites, including Saxa Vord on the Shetland Islands, Buchan, and Inverbervie in Aberdeenshire and Anstruther (the popular Cold War museum now known as ‘Scotland’s Secret Bunker’) alongside the ROC network provided vital data to Barnton. Crucial flight information (including height, direction, numbers, and aircraft type) was fed into the bunker via the telephones and teleprinters which was then assembled within the central operations well – an innovation developed from the earlier WW2 Fighter Command pre-cursors.
Here, a map plotting table positioned at the base of the three-level void space and tote board mounted to the far side wall enabled RAF officers to compile a full picture of any potential incoming attack from Soviet bombers. Had fighter jets been considered unable to intercept the incoming Soviet aircraft in time, flight data was to be issued from Barnton to Anti-Aircraft Operations Rooms (AAOR) strategically placed around the country, such as Cragiehall, Edinburgh; Torrance House, East Kilbride; Inverkip west ofGlasgow, and Gairloch in the remote Scottish Highlands. Upon receival, the AAOR were tocommand the anti-aircraft batteries as a last line of defence in attempts to down any Soviet aircraft before reaching their intended targets.
Due to rapidly developing technology in weaponry, aircraft and radar, the Rotor Programme was modified in the mid 1950's with reporting and control designated to the principal GCI radar stations which removed the need for the Sector Operations Sites including Barnton Quarry which subsequently closed.
For a short time thereafter the WWII Surface Operations room at Barnton was used as a temporary home for the Royal Observer Corps while their new purpose built Group Control Bunker was constructed at RAF Turnhouse (Edinburgh Airport).
(The same thing happened at Kelvedon Hatch near London - The site was temporarily used by the ROC mid 50's to early 60's while their new Group Control Bunker was being built at Horsham - They vacated Kelvedon in the early 60's and Kelvedon then became the London area RSG - These are the only two sites where this happened).
In the early 1960's ownership of the Barnton Bunker was passed to the Scottish Home and Health department and became the RSG (Regional Seat of Government) for Scotland. The whole of the UK being divided into 12 regions all under the ultimate control of theHome Office in London (Department F6).
In the early 1960's the Royal Observer Corps moved out of the bunker into their new purpose built Group Control at Turnhouse. This in turn reported to the new Sector Control Bunker in Dundee. (The Turnhouse bunker was demolished in 1993).
As a mark of significance, it was assigned as the main back-up headquarters to house the Secretary of State for Scotland (the highest Ministerial position in charge of Scotland’s political administration) and a carefully selected body of personnel tasked with a post-nuclear recovery – a staff count of approximately 400. Once the Kirknewton bunker (one of Scotland’s former Regional War Rooms constructed in the 1950s for civil defence duties) was extended and operational by the mid-1960s, Barnton then shifted functions to operate as the Eastern Zone Sector Headquarters in support of the SCC during a scenario of post-nuclear recovery. In serving this role, the stationed personnel would provide situation reports to Kirknewton and enact political functions as key decisions passed down the hierarchy.
After the Spies for Peace discovered and breached the Warren Row RSG bunker, Barnton’s existence was inadvertently exposed and became a backdrop of CND activism throughout the 1960s. Demonstrators marched from Edinburgh city centre to protest outside the bunker’s gates and several break-in attempts caused damage and raised serious security concerns over the entire bunker network. Barnton, alongside the other SCC and zone controls, functioned in this capacity through the 1960s and 1970s before ownership was transferred to Lothian Regional Council for use as an Emergency Planning Operations Centre until the end of the Cold War. By the early-1990s the site became surplus to requirements and was placed on the property market for sale.
Following its sale to a private buyer in 1991 (for use as a secure storage facility), Barnton Quarry subsequently fell into a severe state of decay and suffered damage from fires in the mid-1990s that destroyed a significant part of the building fabric, furniture, fixtures, and fittings. During this period of neglect, the site also became a zone for illegal fly-tipping, vandalism, and material theft which inadvertently produced one of the most atmospheric locations which attracted urban explorers and photographers in the following years. In 2011, however, the plot was purchased by a more sympathetic owner who has since orchestrated a planned and dedicated programme of works, assisted with a core group of volunteers, to restore the bunker back to its initial 1950s ROTOR SOC layout. The ultimate intention is to open the full site to the wider public as a visitor attraction, exhibition space, and dedicated tourist attraction.
Barnton Bunker Architecture

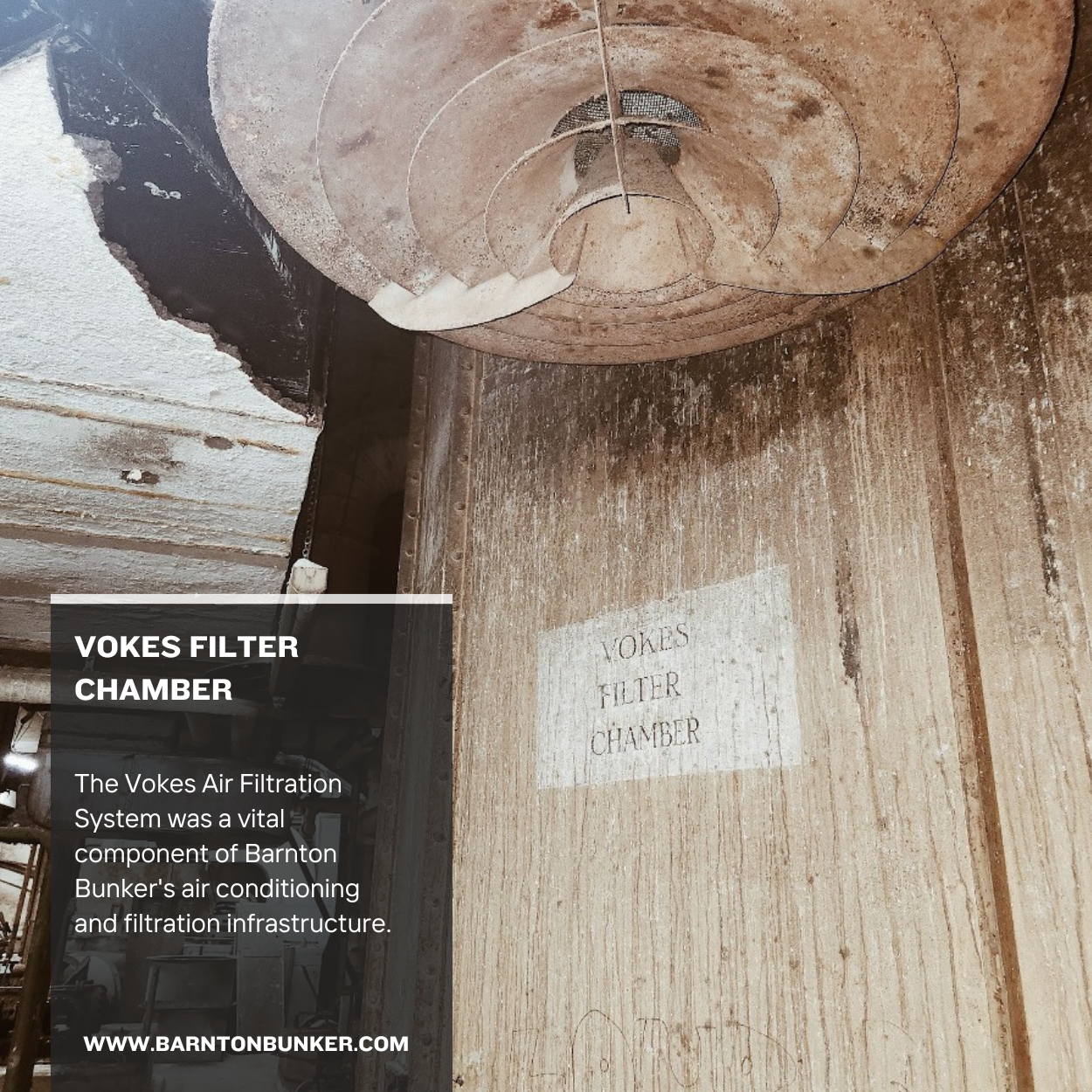

Much like the WW2 RAF Fighter Command Operations Room the latter Cold War ROTOR R4 bunker was designed and constructed with firm utilitarian principles in mind. Using specialist civilian contractors who had previous experience with underground public works (including subterranean transport systems), the bunker was buried deep into the excavated quarry space and carefully concealed so that no evident trace be left at surface-level. Although any obvious architectural features were limited above ground (the air ventilation ducts and emergency exit were located within the dense woodland with the access tunnel neatly formed onto the side wall of the extant WW2 surface building), it was the bunker’s artificial interior space that was of notable significance. For example, the building services installed are reflective of the innovative building technology of the post-war period. Life support systems, air filtration and heating services provided personnel with some of the most comfortable living and working conditions available at the time. Similarly, the service cavitiesthroughout the bunker’s floorplate contain the earliest raised access systems installed within Britain – widely deployed across ROTOR facilities to provide ample and timely access to cabling for the likes of electricity, radar antenna links, and telephone trunk lines.
Internally, beyond the state-of-the-art building services, the R4 bunker’s operation aimed at maximizing efficiency by facilitating the tracking, plotting, recording and - should it be required – interception of Soviet aircraft entering British airspace. Like the WW2 precursors, the Air Ministry planned the bunker around the central operations well, which at Barnton, spanned the full three-storeys in depth. At first, second, and third levels Perspex-fronted cabins grouped around the operations well and permitted a larger number of RAF officers’ clearer lines of sight towards the floor-mounted plotting table and wall-fixed tote board. Additional rooms located across the remaining floorspace provided essential staff facilities like dormitories, toilets, kitchen and mess halls, and various offices for multiple government and military departments conducting support. The major plant machinery, vital in maintaining the bunker’s artificial environment and life-support systems, was positioned at the lowermost level alongside a substantial communications room to maintain the trunk telephone and teleprinter networks.
When assuming its role as an emergency government facility the original R4 bunker underwent significant alterations. Changes included the three-level operations well being infilled with a steel frame to provide the required floorspace for increased civil servant desks. Moreover, a standardised British Broadcasting Corporation (BBC) radio studio was retrofitted into Barnton – as with the other SCC network in Scotland and RSG bunkers within England. Here, recorded messages and live updates were to be transmitted after a nuclear attack to the surviving population and inform the public of key events during the recovery phase.
Rarity
Barnton Bunker complex is a remarkable example of how national defence and military needs can drive architectural innovation and is unique in several ways. Although Barnton is the only ROTOR R4 SOC that was ever created within Scotland there are some surviving sites of comparison within England. These examples include Bawburgh, Shipton, Box, Longley Lane, and Kelvedon Hatch (now preserved as a visitor attraction). Whilst remarkably similar to Barnton, the bunker at Kelvedon Hatch survives in the form of its latter RSG layout where the three-level operations well has since been infilled and viewing cabins removed. And as a result of the resolute and careful restoration sincebeing rescued from its prolonged period of neglect, Barnton has subsequently become the only instance of the R4 SOC type-bunkers where the original arrangement survives largely intact.
Also, while the disused quarry provided Barnton Bunker complex ideal conditions for concealment and camouflage, the wider location is unique when compared to Britain’s other R4 SOC structures. This difference is primarily exhibited by all other English sites being set within more rural locations, away from populated centres whereas Barnton was much closer to a distinctly more urban context as seen on the map pictured here. At the time of commencing construction in the early-1950s the quarry site lay on the periphery of Edinburgh; the adjacent developments of Davidson's Mains and Blackhall fell to the east, and the Clermiston housing estate to the west. This combined presence of residential neighbours meant more extensive efforts were required in concealing Barnton’s construction and early operation from the wider public as well as Soviet surveillance.
Historical Significance
Overall, the Barnton Bunker complex is a vital asset to Scottish history and heritage that spans a significant period of 20th century events. Although few examples of WW2 Fighter Command Operations Rooms still exist, many have since been demolished or heavily altered. For instance, the remaining examples at Leuchars, Tain, and Boyndie have survived, but they are not intact to the same level as Barnton. Moreover, the ROTOR R4 SOC complex is not only the largest and deepest Cold War-era bunker built within Scotland but is also the only ROTOR type structure of its kind built north of the border. Subsequently, thanks to the dedicated restoration efforts the bunker is in the process of being the only example of a three-level operations well preserved across the whole of Britain.
Both bunkers at Barnton are a key example that highlight the changing defence needs and strategic approaches to countering aerial threats during WW2 and Cold War timelines. Despite the ROTOR system becoming obsolete to technologically advanced Soviet jets and weaponry, the Barnton Bunker complex demonstrated a commendable capacity to be adaptively re-used for civil defence. Its continued value to Scotland and Britain’s defence needs is particularly highlighted by its role as an emergency government hub for ensuring survival and recovery post-nuclear attack.
As you explore the Barnton Bunker complex, the building fabric provides a sense of the scale behind its history. It is a rare and tangible link to the global Cold War geopolitical stand-off alongside elements of secrecy, subterfuge, and anxiety that reflect this period. The transformation of RAF Turnhouse into Edinburgh Airport has largely erased all traces of its military history, but Barnton’s survival demonstrates a testament to the ingenuity and resourcefulness involved in its design and construction and the site's ongoing importance throughout the noteworthy events of the 20th century.
